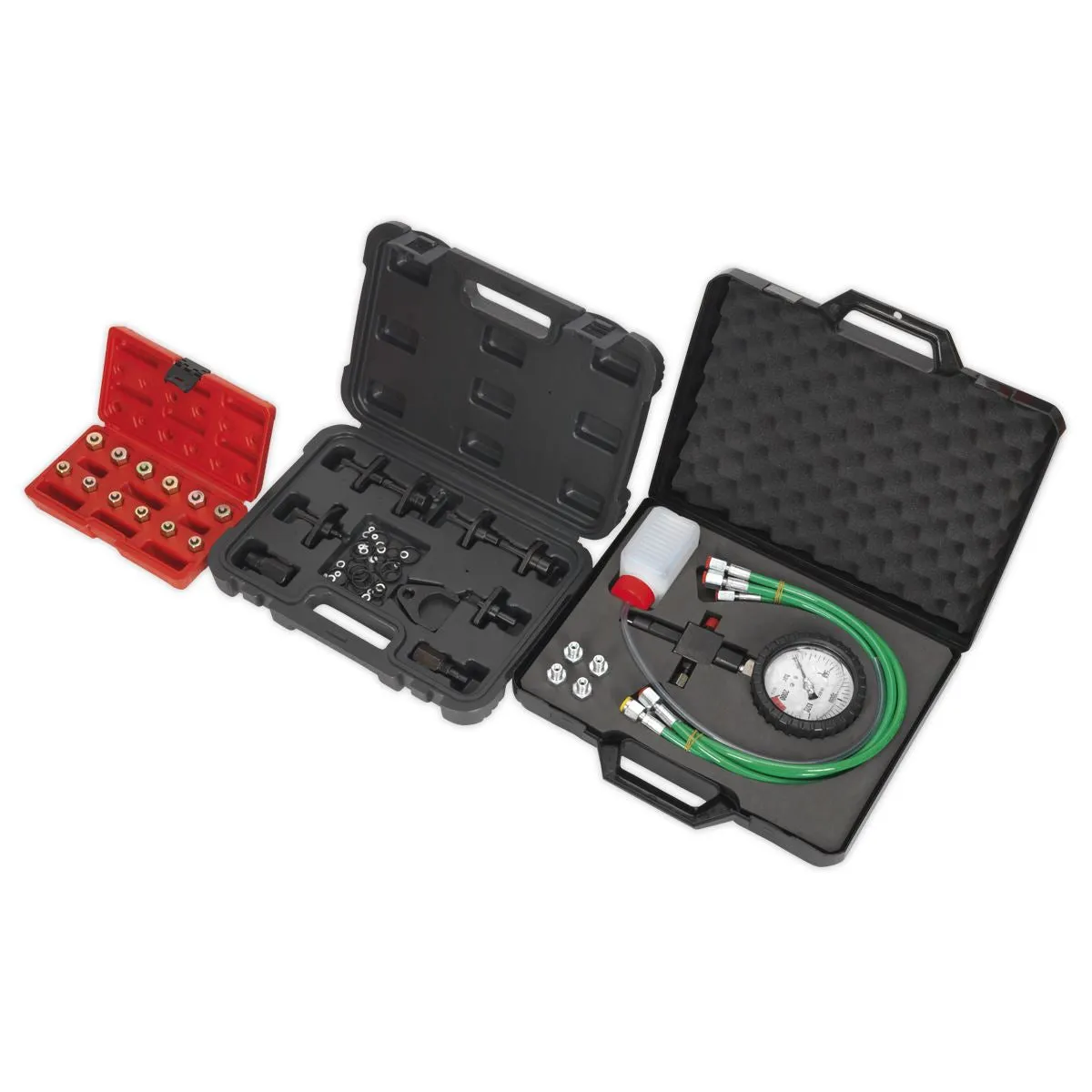

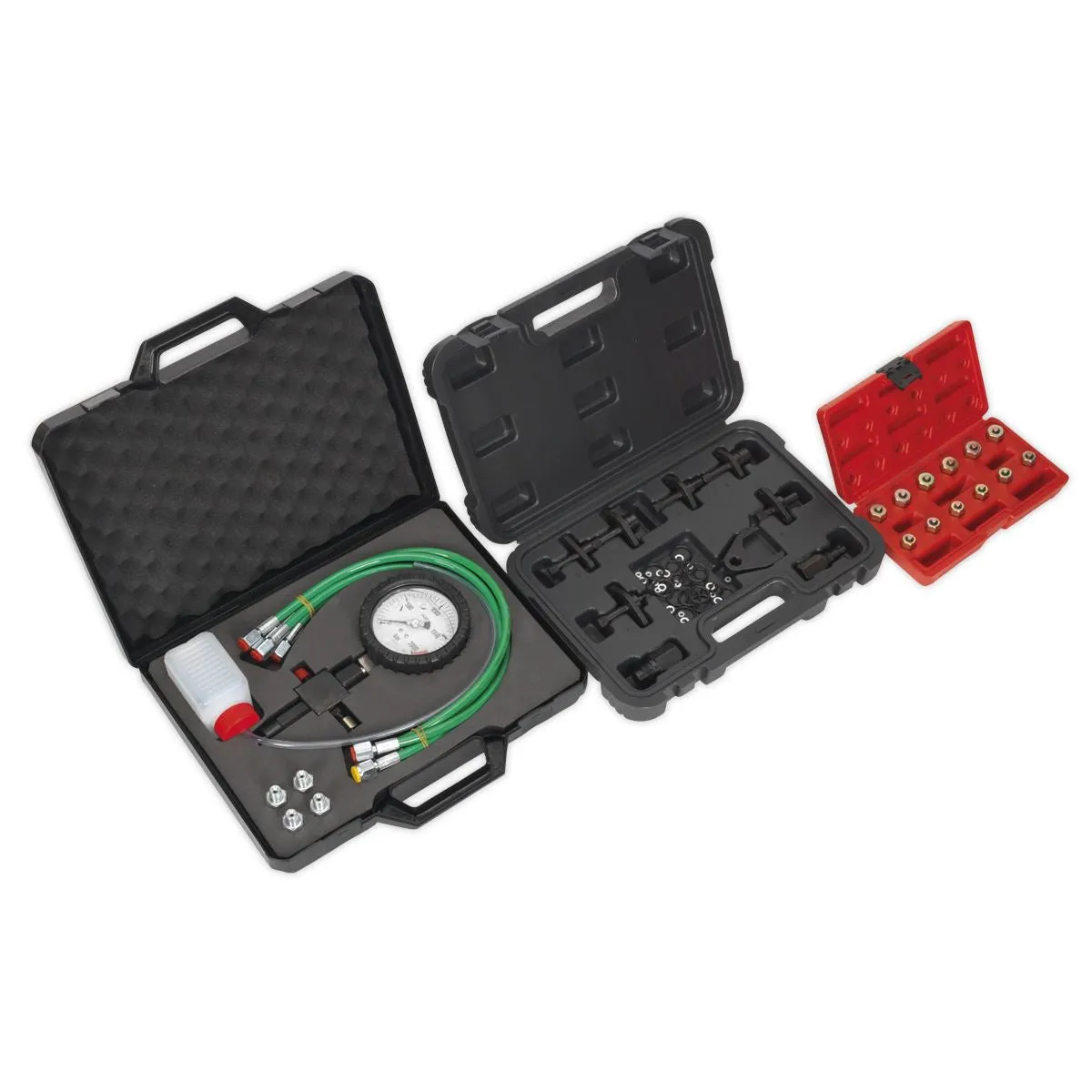

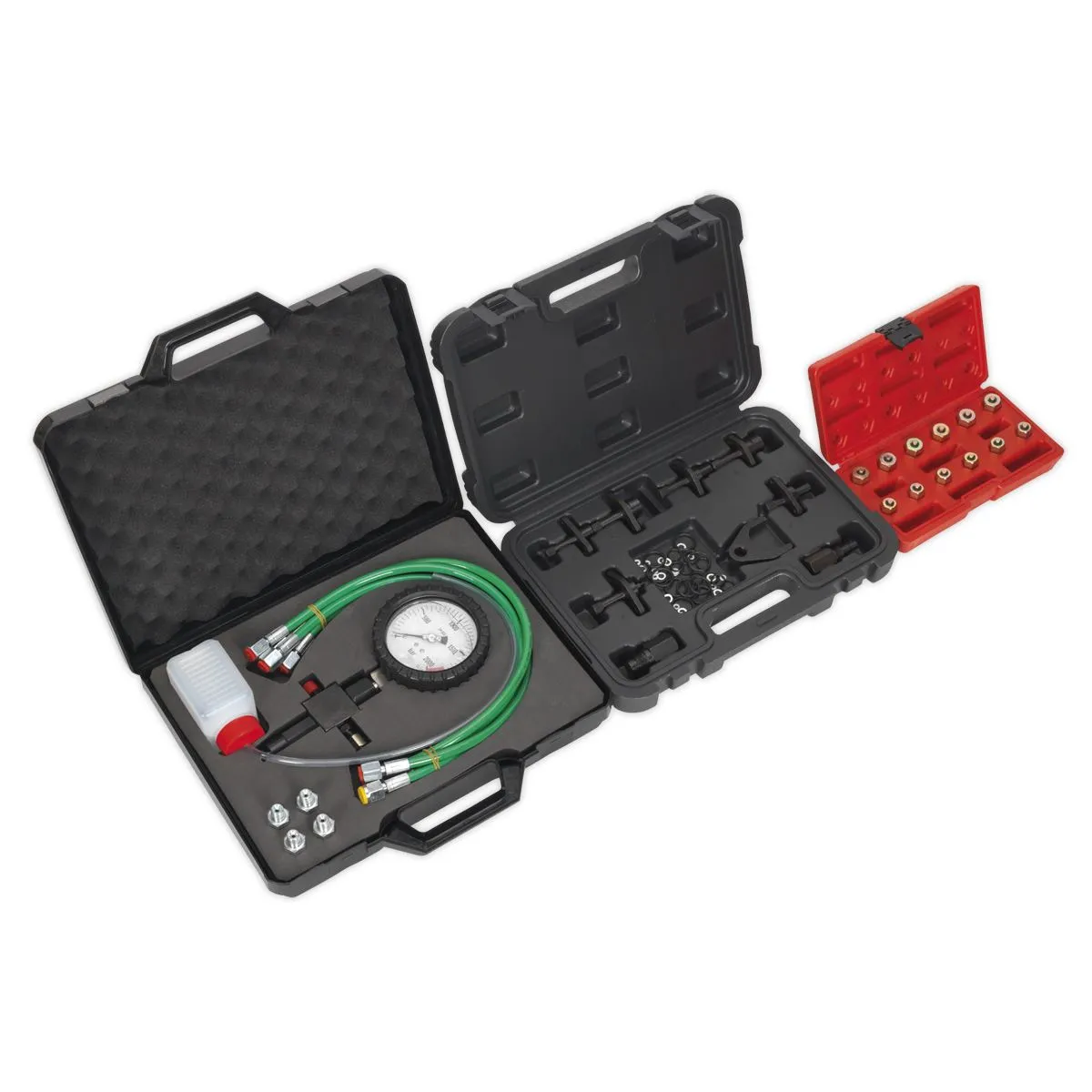

Sealey Diesel High Pressure Pump Test Kit
Essential tool for accurately measuring the high pressure fuel circuit of diesel common rail systems.

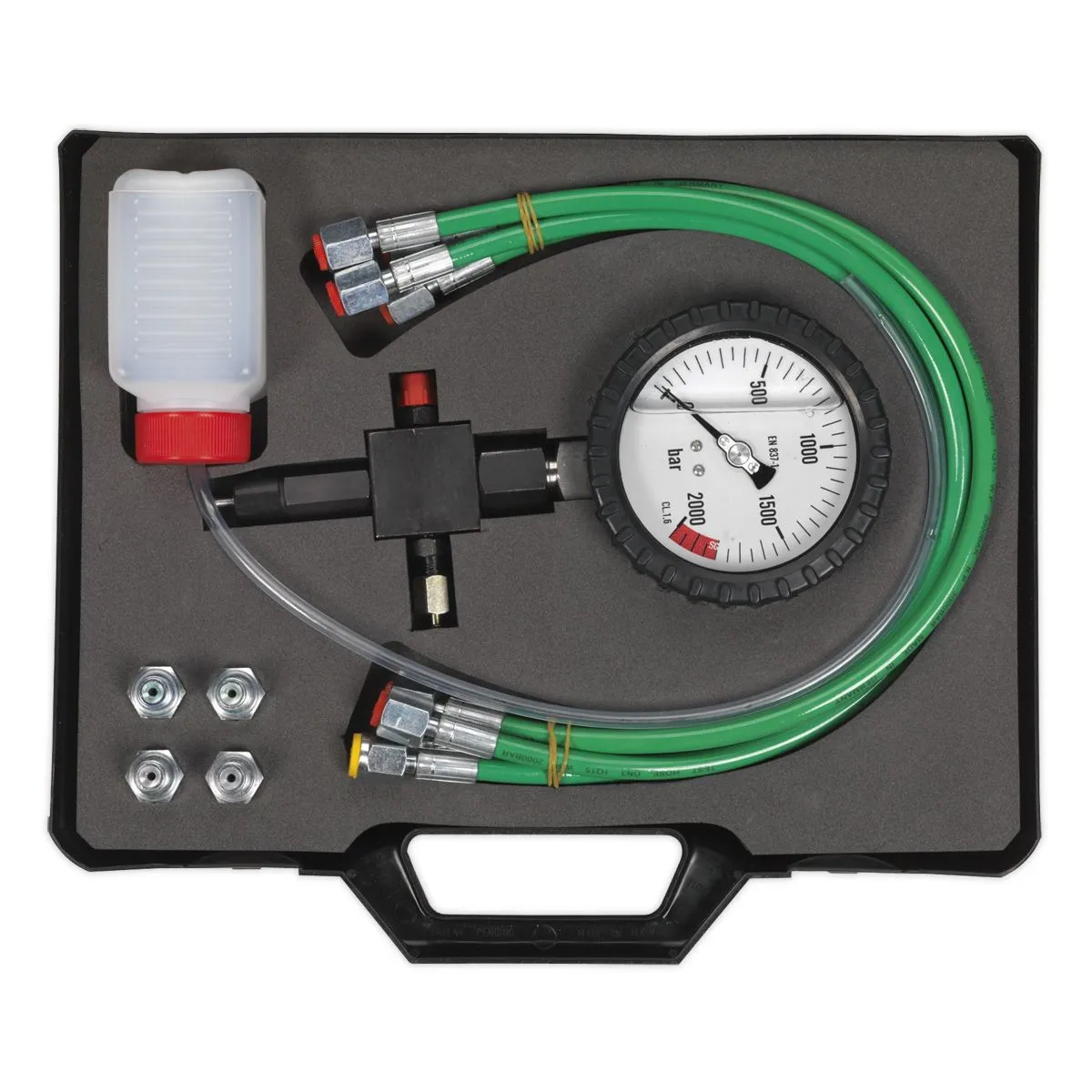

Features 2,000bar gauge, pressure relief valve and high pressure flexible hoses.

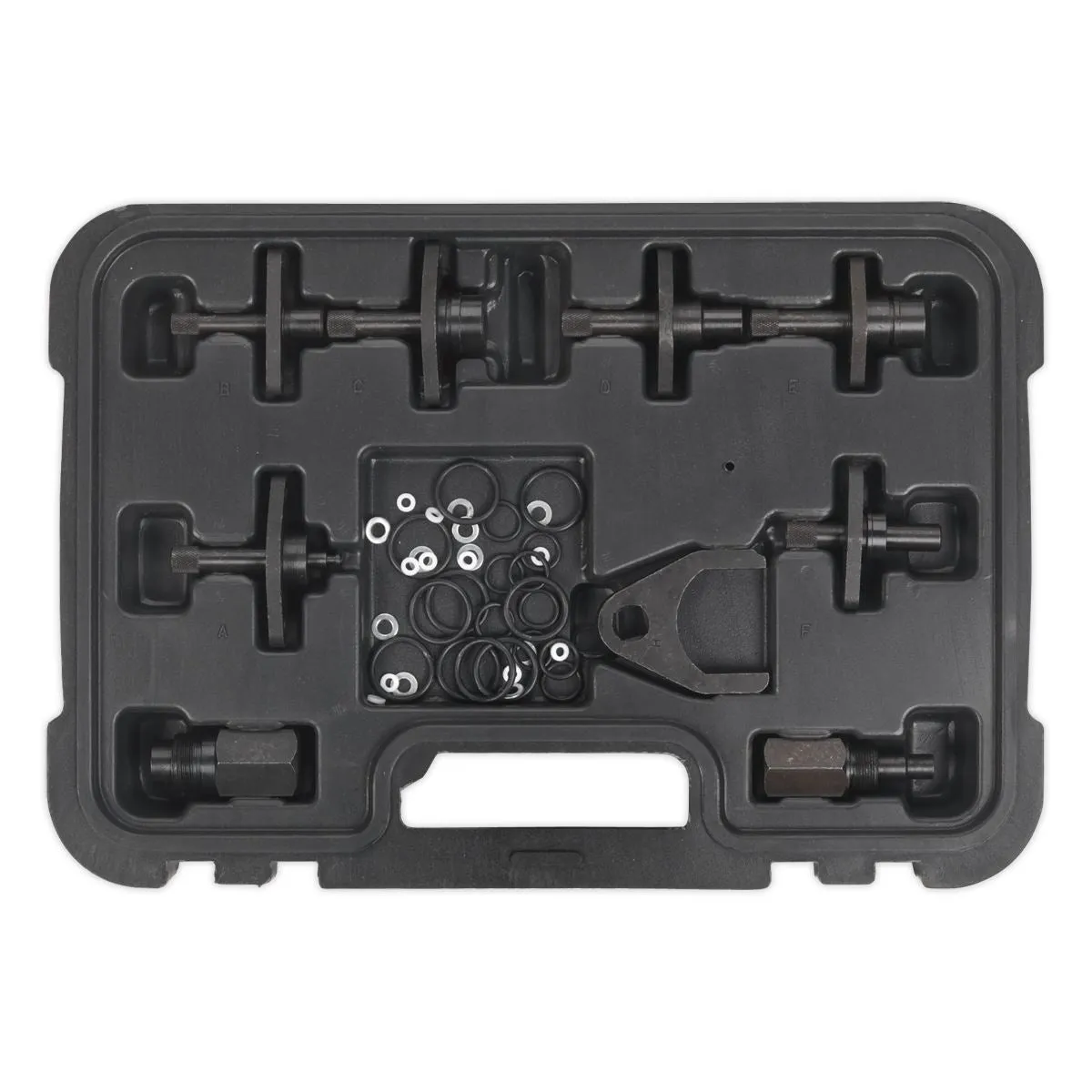

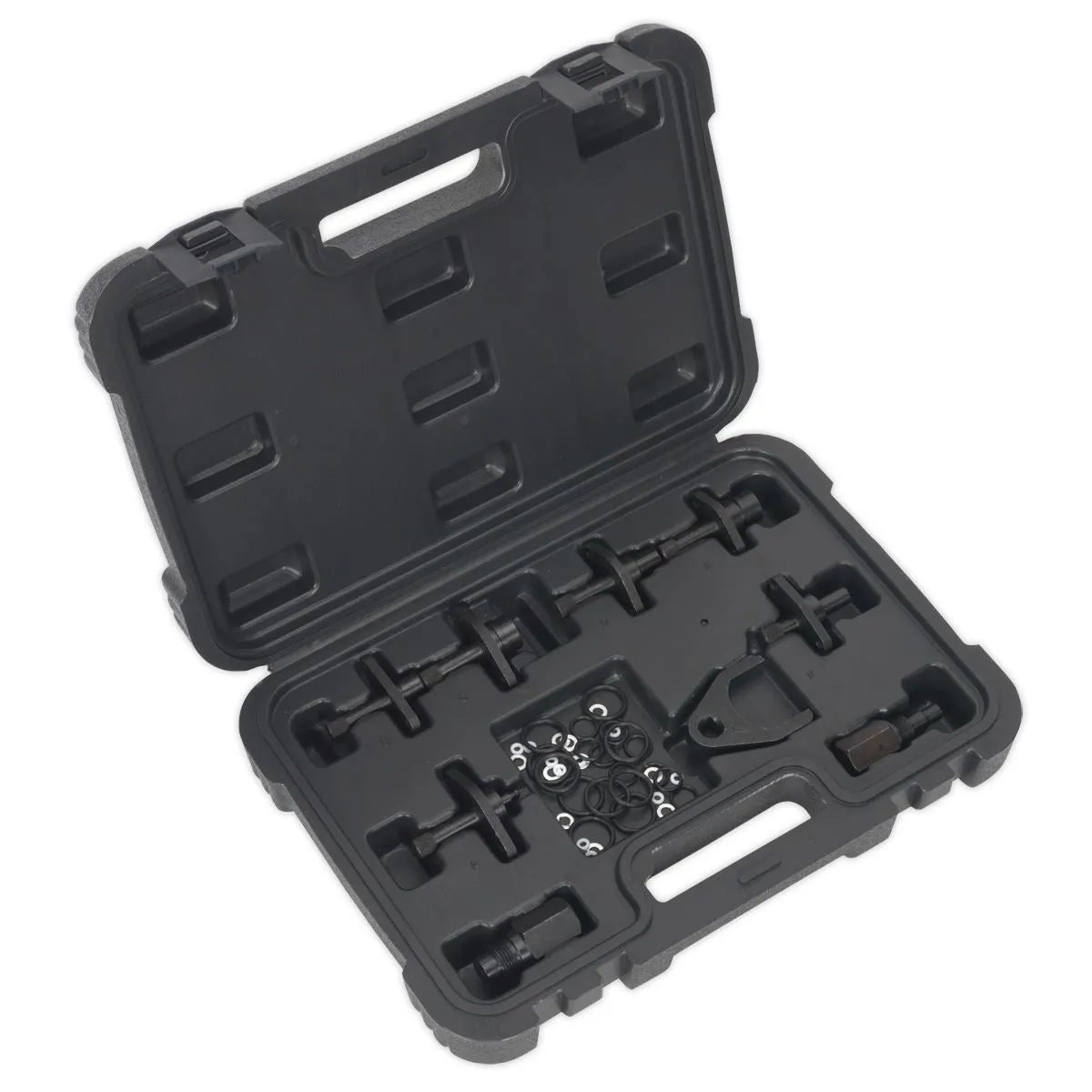

The kit also includes a set of dummy pump regulator and injector pipe blanks.

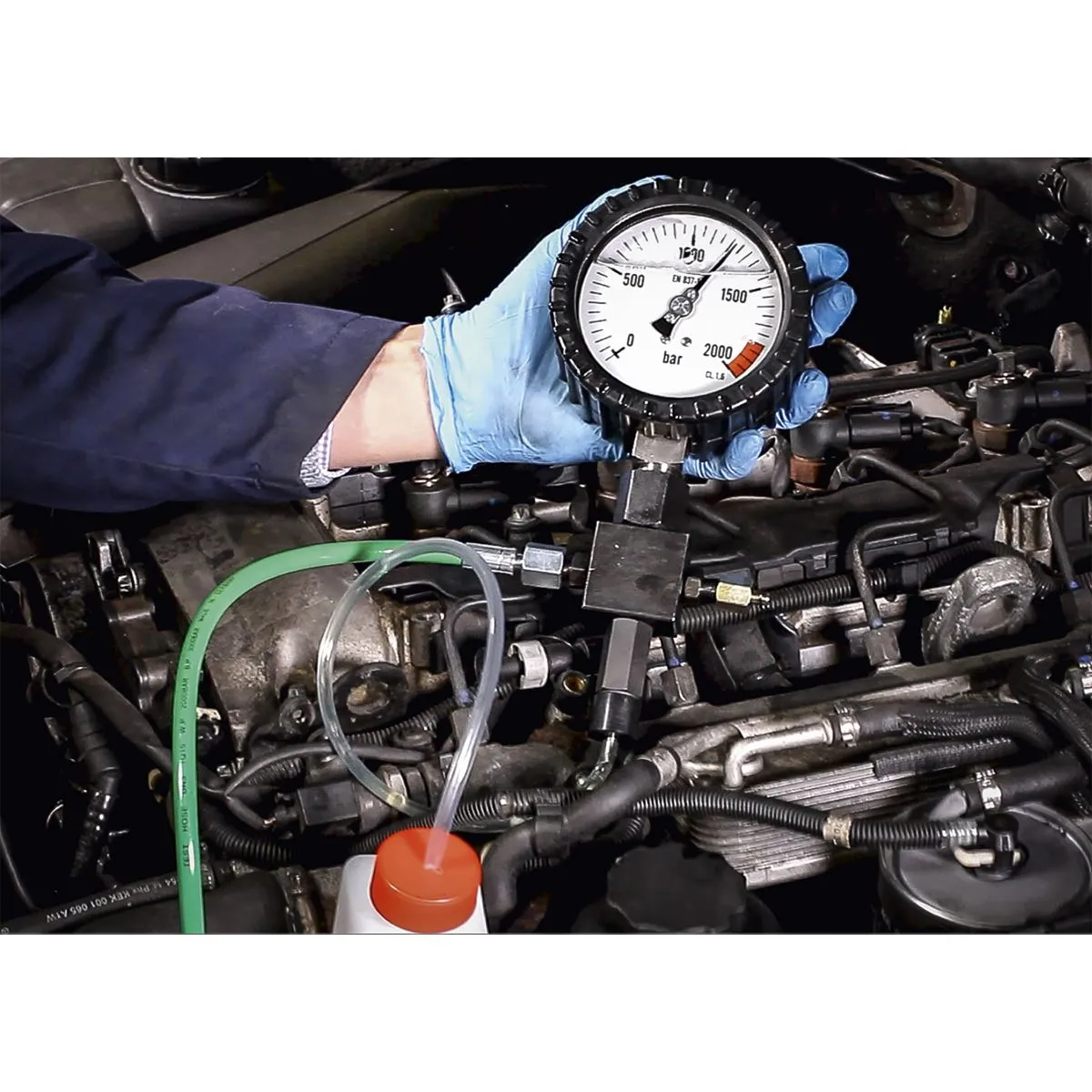

Kit allows for a variety of tests to be conducted: - Engine cranking/running pressure test - Maximum pump pressure test - Pump pressure regulator test - Injector leakage test.
Specification:
- Model No VS216
- Brand: Sealey
- Nett Weight: 5.56kg
- Gauge Pressure Range: 0-2000bar
- Hose Length: 500mm (x6)
- Hose Fittings: M12 x 1.5 (x2), M14 x 1.5 (x2), M14 x 1 (x1), M16 x 1 (x1)
- Hose Fitting Adaptors: M12 x 1.25 (x2), M14 x 1.25 (x2)
- Dummy Regulator Applications: Bosch CP1, Bosch CP3, Bosch CP4, Delphi DFP1/DFP3, Denso HP1/HP2, Denso HP3, Siemens DCP1, Siemens DCP2

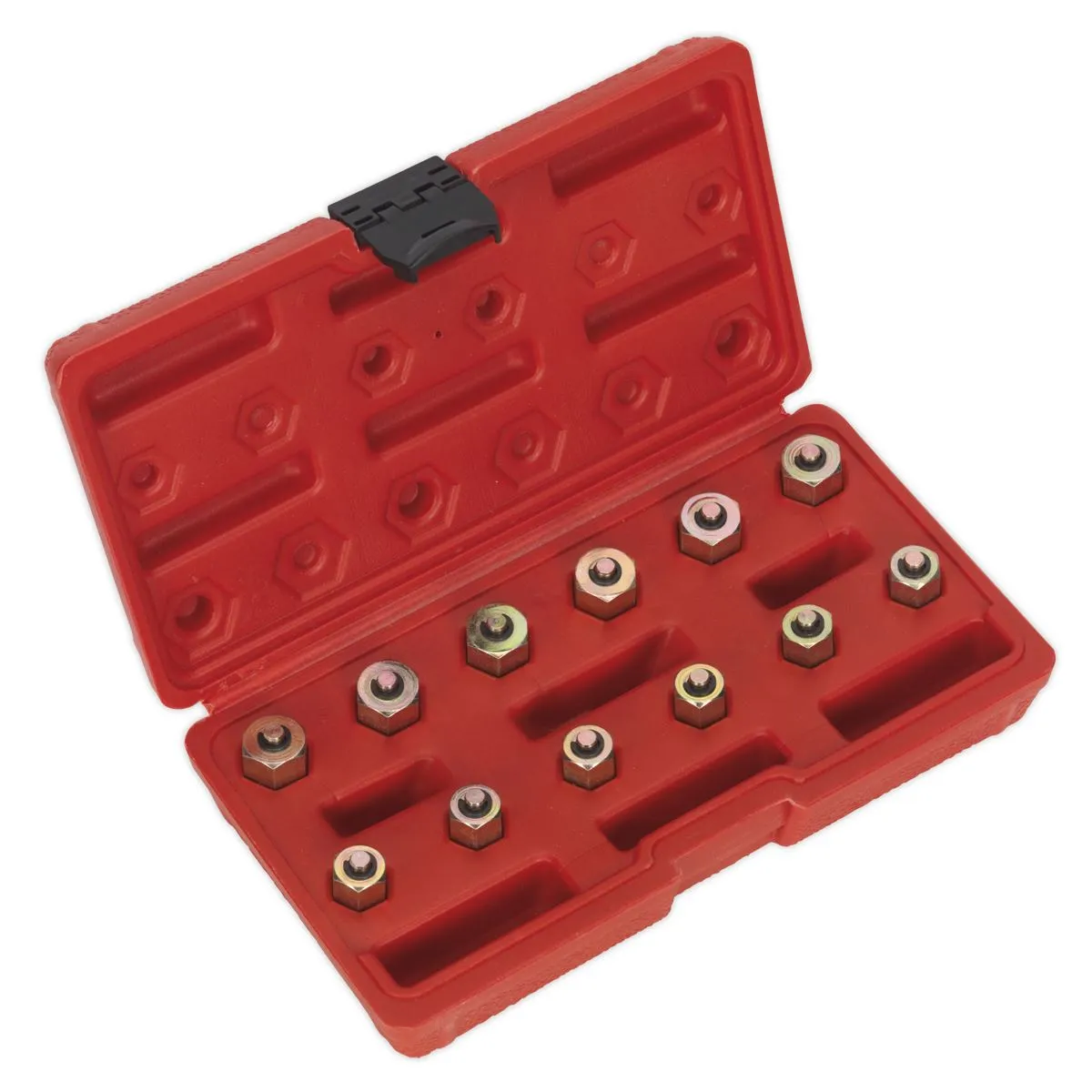

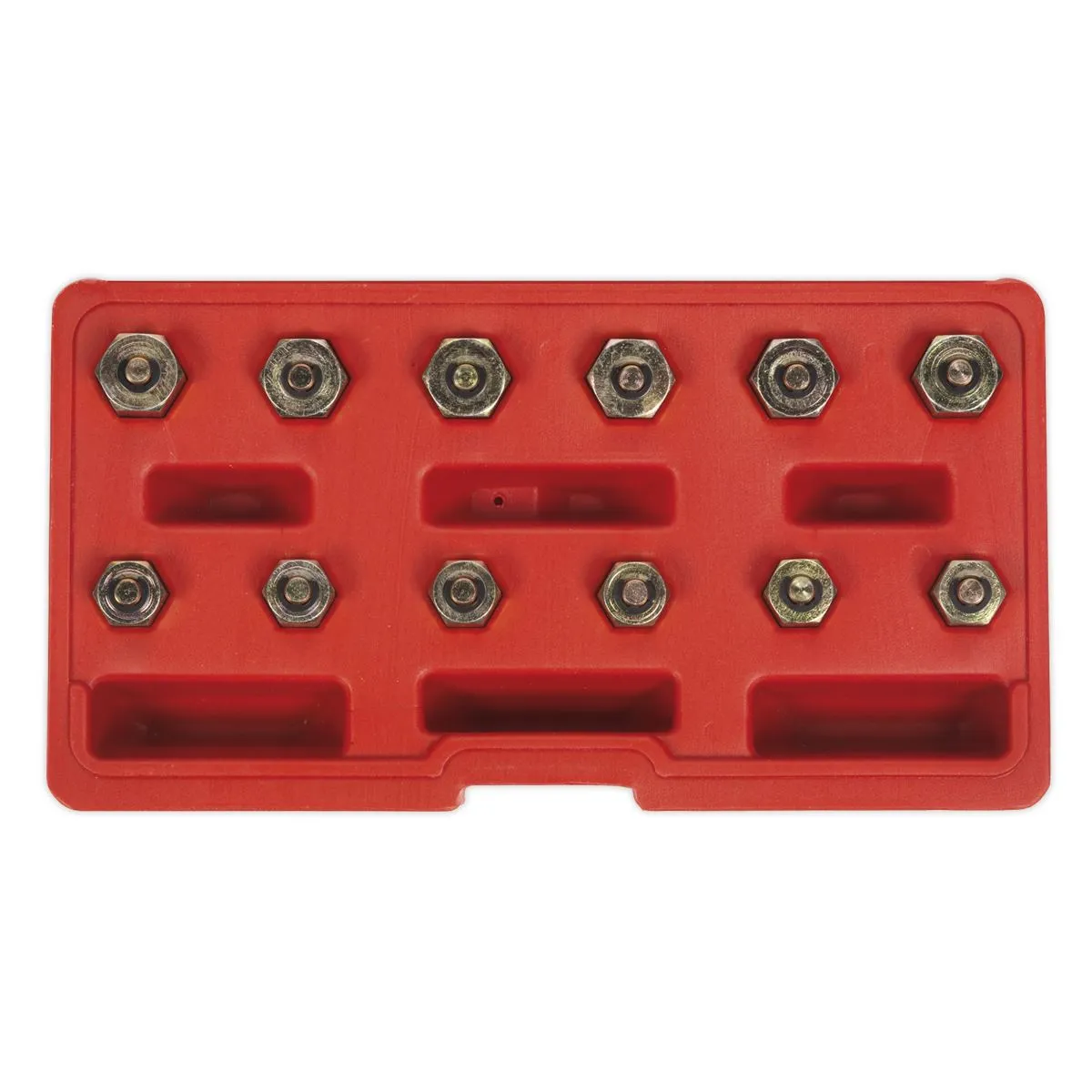

- Injector Pipe Blanks: M12 x 1.5 (x6), M14 x 1.5 (x6), M14 x 1 (x6)
- Pump Outlet Blank: M12 x 1 (x1)
Catalogue Page: Page 431
